RHS 7.5Induction Heating System

7.5 kW|Accessory

RHS 7.5
Spec

  • Usage

    Induction heater remote controller

  • cooling device

    water cooled

  • Condenser placement and mounting number

    serial. parallel X 4개

  • dimensions

    W. 17 x H. 22 x D. 35 (cm)

  • weight

    5.4 (Excluding condenser) kg

Technologies
characteristic
  • The RHS is a device to minimize the loss of the resonance circuit when the WorkCoil is transported or far from the Power_Suppy. It consists of a high-frequency output cable and a condenser rail.
Advantages
Power stability of output

By using an air-cooled coaxial output cable and minimizing the distance between the workcoil and the resonant condenser, reactive power is reduced and high frequency output is stabilized.

Convenience of use

Up to 12 resonant condensers can be mounted in series or parallel to enable the use of various types of workcoils.

Economics

Heating efficiency increases by minimizing the distance between the workcoil through which large currents flow and the resonant condenser.

Basic structure

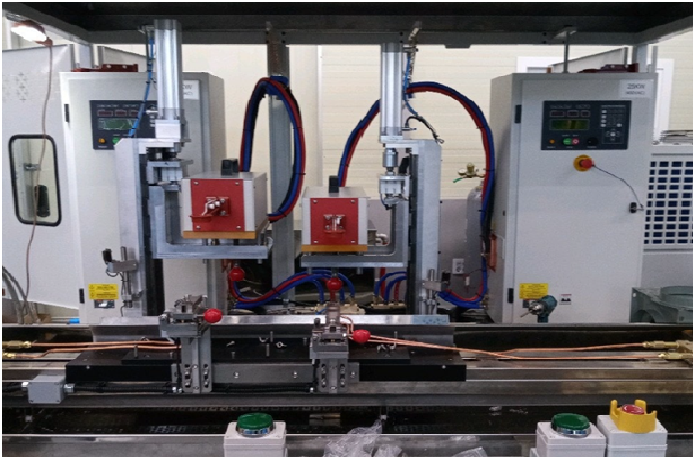

The induction heating system is composed of four main components.

  • induction heating device
  • cooling device
  • switchboard
  • work coil
Main specifications

induction heating system

Output

orange_borderbottom
출력아이콘

  • output voltage

    7.5 kW

  • frequency range

    35~400 kHz (May change depending on the specifications of the condenser)

  • oscillation voltage

    500V below (May change depending on the specifications of the condenser)

  • cooling quantity

    0.032 L/sec more

structure

orange_borderbottom
구조아이콘

  • output cable

    air-cooled Co-axial Cable

  • dimensions (WxHxD)

    17 x 22 x 35 cm

  • weight

    5.4 kg (Excluding condenser)

Download

You can download the product manuals, reports, product specifications, outside view, catalog and circuit diagram.

매뉴얼 제품스펙 외형도 회로도
